High Efficient 6900m3/H Pulse Bag Dust Collector For Cement Plant

High quality efficient pulse bag dust collector for cement plant

Features:

1. The dust removal efficiency is high, and a variety of dust removal methods are above 99.9%;

2. It is equipped with a variety of normal temperature, medium temperature and high temperature cloth bags to deal with various dusts of different properties and environments;

3. A variety of products with different specifications and models, with a wide range of options, which can meet the needs of various working conditions;

The cloth bag is the "heart" accessory of the bag filter. The correct selection of the bag filter material is very important. Dust removal provides users with a variety of normal temperature, medium temperature and high temperature filter bags to meet different working conditions. In addition to the bag, the dust removal system plays a decisive role in the dust removal efficiency of the bag filter. The dust removal method is one of the characteristics of the bag filter and one of its classification standards. According to the cleaning method, the bag filter is divided into three types: mechanical vibration cleaning bag filter, pulse jet bag filter, and reverse blowing type bag filter.

Techinal parameters

The long-bag pulse dust collector can choose pressure difference control and timing control to clean dust according to different treatment processes. The pressure difference control mechanism is to open and close the back-blowing process according to the resistance value of the dust collector. When the resistance of the dust collector reaches the preset value for dust removal, generally 1200-1500Pa, a control signal to start the back-blowing cycle is issued, and the dust collector repeats the cycle of "dust removal-sedimentation-filtration" unit by unit until The resistance of the dust collector is reduced to the lower limit of the set resistance, which is generally 1000Pa. The pressure difference control mechanism can always control the resistance of the dust collector within the specified range, so that the dust collector maintains good dust removal efficiency and low operating energy consumption.

The long bag pulse dust collector is mainly composed of the upper box body, the middle box body, the ash hopper, the air inlet equalizing pipe, the bracket, the filter bag and the blowing device, the ash unloading device, etc., and the dust-containing air flows from the air inlet of the dust collector. Pipe into the ash hopper of each compartment, and under the diversion of the ash hopper diversion device, the large particles of dust are separated and fall directly into the dust, while the finer dust evenly enters the middle box and is adsorbed on the outer surface of the filter bag. The clean air enters the upper box and is discharged into the atmosphere through off-line valves and exhaust pipes. As the filtering conditions progress, the dust on the filter bag accumulates more and more. When the equipment resistance reaches the limit resistance value (generally set When it is 1500Pa), after the ash cleaning device automatically closes the off-line valve of one room according to the set value of differential pressure, the electromagnetic pulse valve is opened according to the set procedure to stop the air blowing, and the compressed air is used to instantly increase the pressure in the filter bag. , Shake off the dust on the filter bag (even if the fine dust is sticky, it can be called a thorough dust removal) into the ash hopper and discharged by the ash discharge mechanism.
Xinchen FMQD/PPC series air box pulse bag filter can provide users with different room numbers and different bag numbers PPC32, PPC64, PPC96, PPC128 and other specifications according to the user's different cleaning field conditions. You can choose according to the following parameter table. If you need technical support, you can call Xinchen service hotline: 0317-8046444. After explaining your cleaning site conditions and needs to our professional and technical personnel, we will provide free Provide you with a safer and reasonable dust removal solution

Equipment advantages

▲Clean the dust more thoroughly
The off-line three (filtering, cleaning, static) cleaning method is adopted to avoid the "re-adsorption" of cleaning.
▲More flexible design
According to the requirements of the working conditions, the settling chamber can be designed to increase the life of the filter bag, and the dust concentration can be as high as 1000g/Nm3.
▲Control is more convenient
Adopt PLC program or special pulse controller to control the dust removal, and it can be timed and manually, which ensures the dust removal effect of the air compressor.
Timing description: set the time program to automatically clean the dust from room to room
Manual instructions: Automatic control is adopted during normal work. When a single machine fails, the manual control can be switched randomly to avoid changing the program and causing too much ash accumulation in the ash hopper, causing the auger to jam or causing the dust to accumulate in the pipeline, reducing the suction effect and causing the pipeline to block.
▲Lower cost
Separate chamber spraying and cleaning: One pulse valve can spray one chamber at the same time (the number of filter bags has 32, 64, 96 specifications series). Compared with ordinary dust collectors, one valve blows six bags, and the number of pulse valves is reduced by 6-20 times.

6900m3/h pulse bag dust collector

cement plant pulse bag dust collector

cement plant pulse jet dust collector

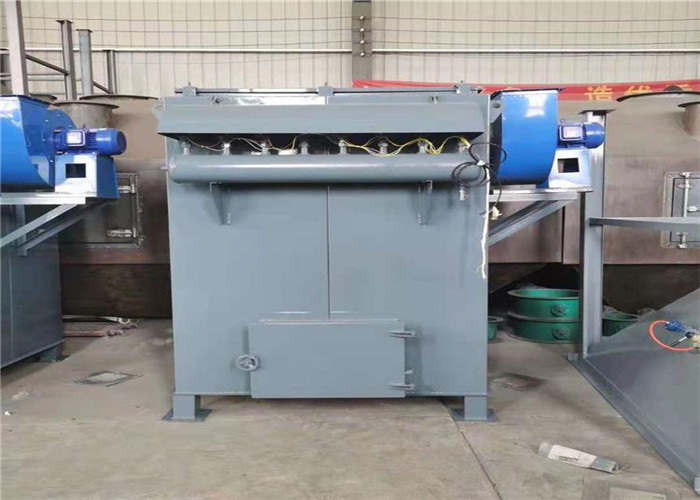

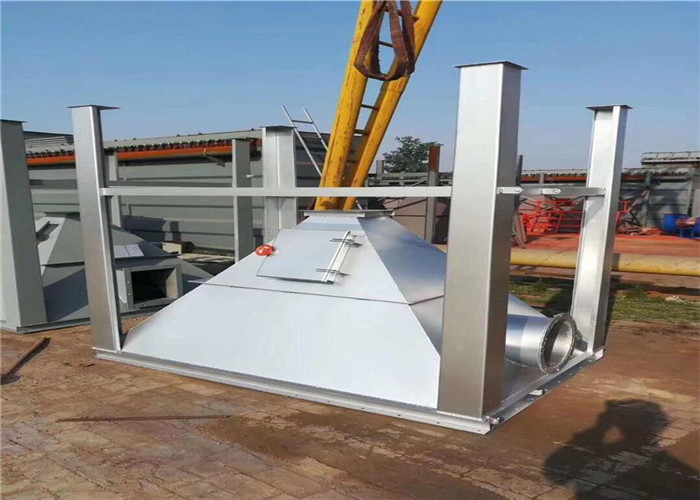

High Efficient 6900m3/H Pulse Bag Dust Collector For Cement Plant Images
